注：这里以 识别集装箱号 为案例进行演示
相关网站
- paddlepaddle：https://www.paddlepaddle.org.cn/
- github：https://github.com/PaddlePaddle/PaddleOCR/tree/main
1 环境配置
当前使用的是虚拟环境：
- python：3.11
- paddlepaddle：3.1
- paddleocr：3.1.0
1.1 安装paddlepaddle
需要注意自己的 CUDA 版本，不要过高即可，查看命令：
nvidia-smi
输出如下：
+-----------------------------------------------------------------------------+
| NVIDIA-SMI 525.105.17 Driver Version: 525.105.17 CUDA Version: 12.0 |
|-------------------------------+----------------------+----------------------+
| GPU Name Persistence-M| Bus-Id Disp.A | Volatile Uncorr. ECC |
| Fan Temp Perf Pwr:Usage/Cap| Memory-Usage | GPU-Util Compute M. |
| | | MIG M. |
|===============================+======================+======================|
| 0 Tesla T4 On | 00000000:00:09.0 Off | 0 |
| N/A 27C P8 8W / 70W | 4MiB / 15360MiB | 0% Default |
| | | N/A |
+-------------------------------+----------------------+----------------------+
+-----------------------------------------------------------------------------+
| Processes: |
| GPU GI CI PID Type Process name GPU Memory |
| ID ID Usage |
|=============================================================================|
| No running processes found |
+-----------------------------------------------------------------------------+
当前电脑的 CUDA 版本为 12.0，所以下载 小于等于 12.0版本的paddlepaddle 即可
python -m pip install paddlepaddle-gpu==3.1.0 -i https://www.paddlepaddle.org.cn/packages/stable/cu118/
检查是否安装成功：
python -c "import paddle; paddle.utils.run_check()"
输出以下内容即代表成功：
(ocr) root@VM-0-80-ubuntu:/workspace# python -c "import paddle; paddle.utils.run_check()"
/root/miniforge3/envs/ocr/lib/python3.11/site-packages/paddle/utils/cpp_extension/extension_utils.py:715: UserWarning: No ccache found. Please be aware that recompiling all source files may be required. You can download and install ccache from: https://github.com/ccache/ccache/blob/master/doc/INSTALL.md
warnings.warn(warning_message)
Running verify PaddlePaddle program ...
I0710 06:19:32.810492 2651 pir_interpreter.cc:1524] New Executor is Running ...
W0710 06:19:32.813128 2651 gpu_resources.cc:114] Please NOTE: device: 0, GPU Compute Capability: 7.5, Driver API Version: 12.0, Runtime API Version: 11.7
I0710 06:19:35.382279 2651 pir_interpreter.cc:1547] pir interpreter is running by multi-thread mode ...
PaddlePaddle works well on 1 GPU.
PaddlePaddle is installed successfully! Let's start deep learning with PaddlePaddle now.
1.2 下载paddleocr
下载网站：https://github.com/PaddlePaddle/PaddleOCR/releases
当前使用的版本是 3.1.0
下载后解压
unzip PaddleOCR-3.1.0.zip
安装依赖
cd PaddleOCR-3.1.0
pip install -r requirements.txt --user
测试是否能正常运行：
python tools/infer/predict_system.py --image_dir="/workspace/img/" --use_angle_cls=True --use_space_char=True
输出以下内容即成功：
ppocr INFO: not find det model file path None
2 准备数据集
2.1 标注工具
2.1.1 PPOcrLabel
存在问题：EXE 安装包运行会报错。但是该工具在本地运行标注的话还是比较推荐的。
下载地址：
- 专门为 PPOCR 制作的标注工具
2.1.2 X-AnyLabeling
下载地址：
- 支持多种导出格式，其中就支持 PPOCR 的格式
2.2 数据集结构
示例：
conno/1b4e2845-e9ba-4233-9268-bf07801ace0e.jpg [{"transcription": "RKSU5020243", "points": [[233, 317], [299, 317], [258, 833], [181, 839]], "difficult": false}]
conno/6ffd244b-1d27-4084-998b-e4d7ac076c5f.jpg [{"transcription": "ZGXU6173701", "points": [[717, 448], [781, 419], [835, 980], [751, 996]], "difficult": false}]
conno/0ba730a8-052b-4662-88fa-bfd3c7dbd118.jpg [{"transcription": "WHLU5706937", "points": [[565, 567], [915, 485], [915, 551], [578, 635]], "difficult": false}]
conno/8f50bf55-f825-43ac-87a5-f744aa3c2099.jpg [{"transcription": "EISU9420010", "points": [[295, 744], [624, 747], [618, 813], [299, 806]], "difficult": false}]
conno/33e22c52-64b6-4715-87d9-d3a7823b97f7.jpg [{"transcription": "SSKU1302201", "points": [[660, 676], [960, 671], [966, 724], [662, 737]], "difficult": false}]
conno/34a24249-7670-4be2-981f-19c502ee7da2.jpg [{"transcription": "TKRU4507940", "points": [[660, 395], [724, 395], [717, 882], [619, 902]], "difficult": false}]
conno/67ead2d0-89c0-455c-aef0-49a76a3492aa.jpg [{"transcription": "待识别", "points": [[585, 415], [589, 415], [593, 501], [917, 341], [893, 263]], "difficult": false}]
conno/78c58cfa-ff0f-4890-9fd9-07a0b639b9ca.jpg [{"transcription": "LYGU3568255", "points": [[553, 393], [587, 491], [972, 334], [983, 245]], "difficult": false}]
conno/481aee74-f9ce-4145-a8c7-f4c1f45fcc75.jpg [{"transcription": "RKSU4005584", "points": [[56, 298], [19, 935], [101, 937], [115, 280]], "difficult": false}]
conno/630d6e72-f99d-4922-8886-ea14f9e1a9bd.jpg [{"transcription": "FCIU2682384", "points": [[562, 737], [572, 803], [867, 712], [858, 655]], "difficult": false}]
conno/9751b358-0b48-4006-8a73-89e816d37b67.jpg [{"transcription": "CNIU2452605", "points": [[608, 801], [606, 867], [908, 837], [906, 773]], "difficult": false}]
3 准备预训练模型
如果已经有预训练模型的话，可以忽略这一步。
下载地址：https://github.com/PaddlePaddle/PaddleOCR/blob/release/3.1/docs/version3.x/model_list.md
如果报 404 的话，根据 版本 + 路径 进行查找即可。

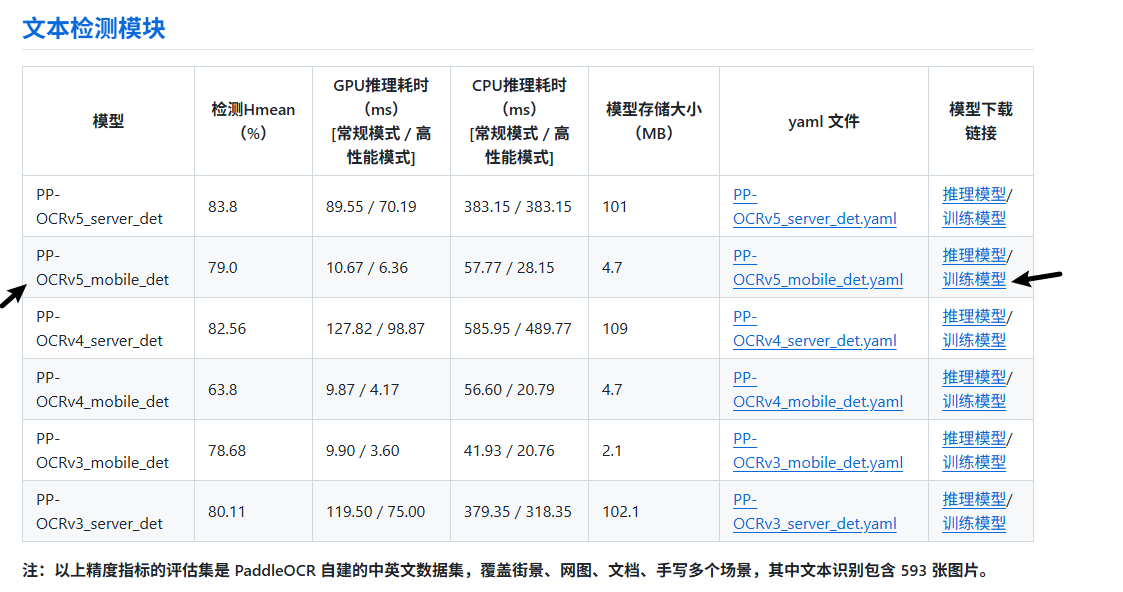

3.1 文本检测训练模型
PP-OCRv5_mobile_det

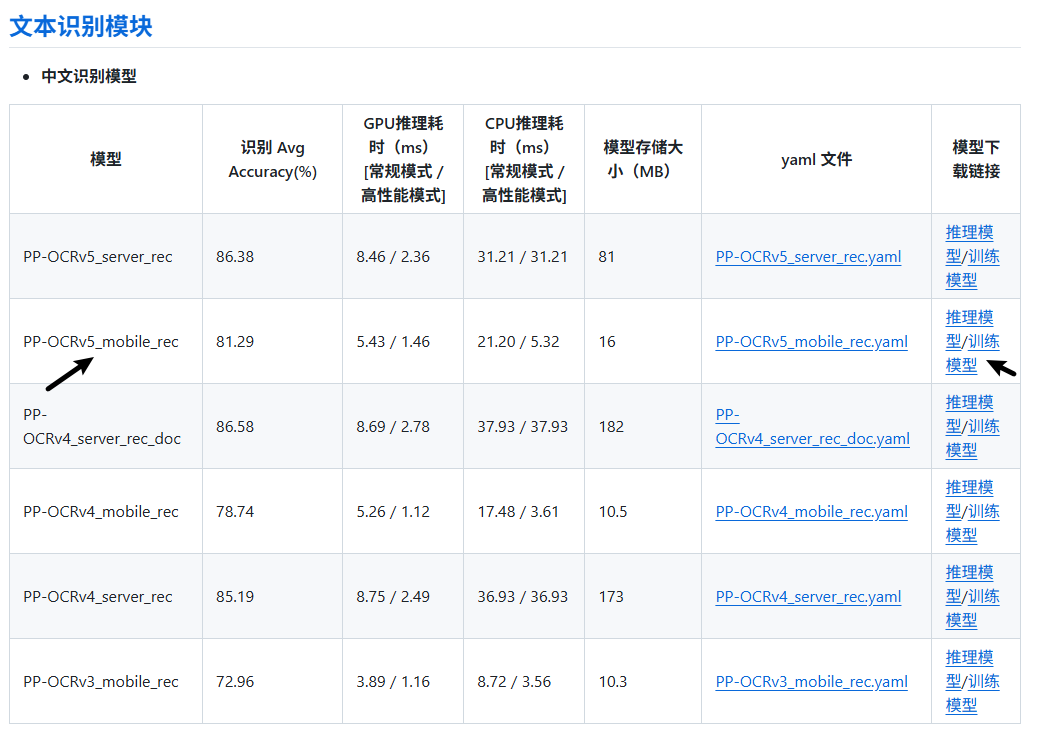

3.2 文本识别训练模型
PP-OCRv5_mobile_rec
4 数据整理
4.1 检测模型所需数据准备
报错处理
ImportError: libGL.so.1: cannot open shared object file: No such file or directory
问题原因
- 缺少
libGL.so.1库
解决方案
sudo apt update
sudo apt install libgl1-mesa-glx
